DIN-rail Modbus modules
Gateways, a three-phase meter, relays and detectors, developed and field tested by GridBit. Every module has a datasheet and a Modbus register map.
- 8
- modules in the range
- 5
- product families
- 35 mm
- DIN rail mounting, IEC 60715
The range
Pick a module

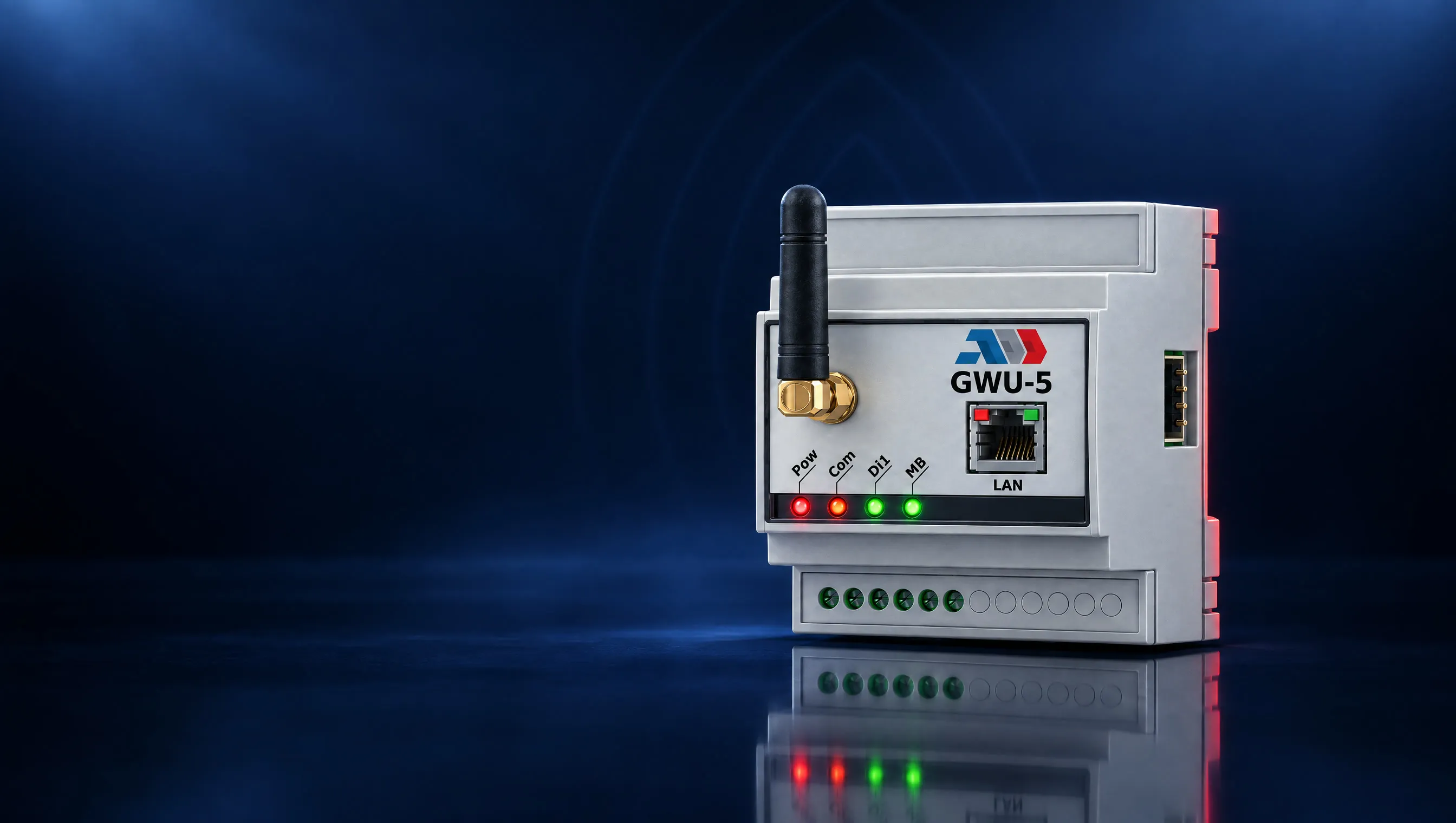

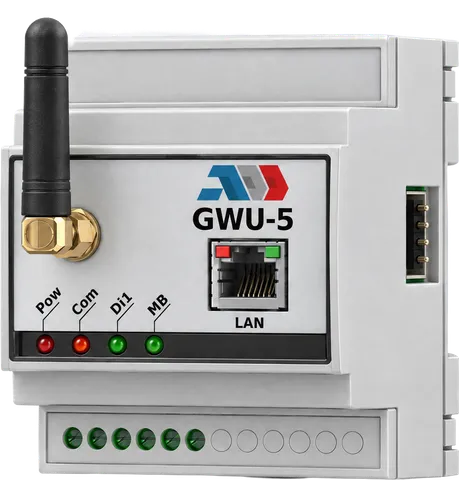

GatewayGWU-54G LTE gateway for Modbus devices, with Ethernet and MQTT4G LTE Cat 1Mobile network, 2G fallbackRS485 + EthernetModbus RTU and Modbus TCP

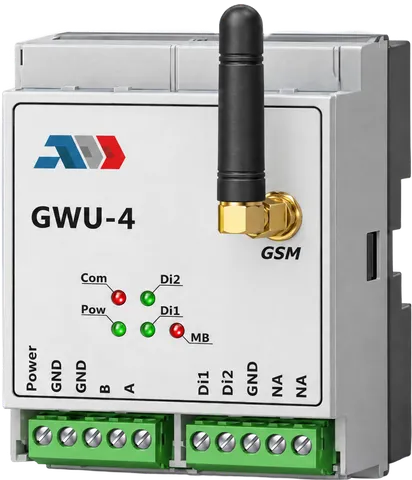

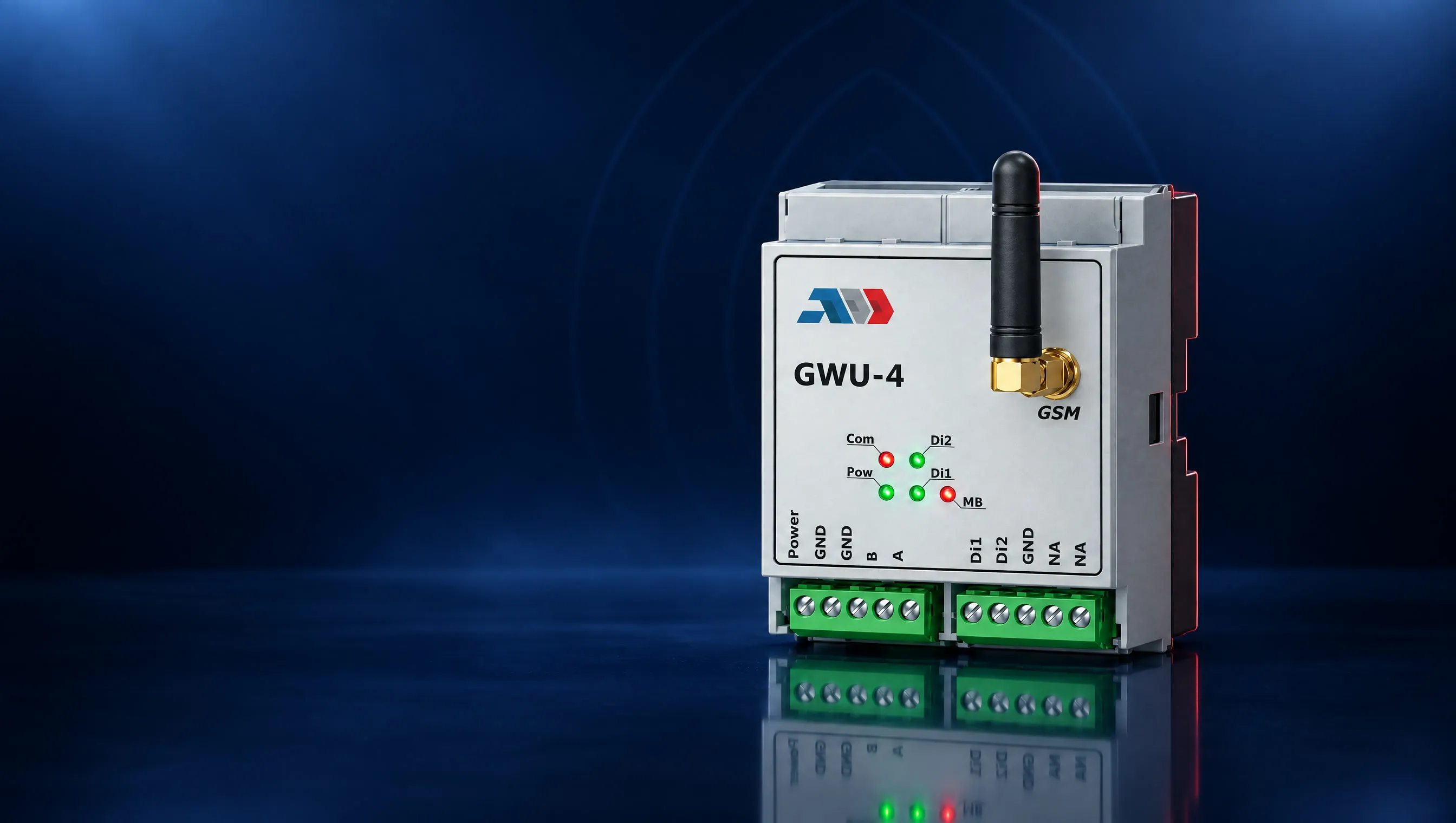

GatewayGWU-42G/4G gateway for Modbus RTU devices, two digital inputs4G LTE Cat 1Mobile network, 2G fallbackRS485Modbus RTU

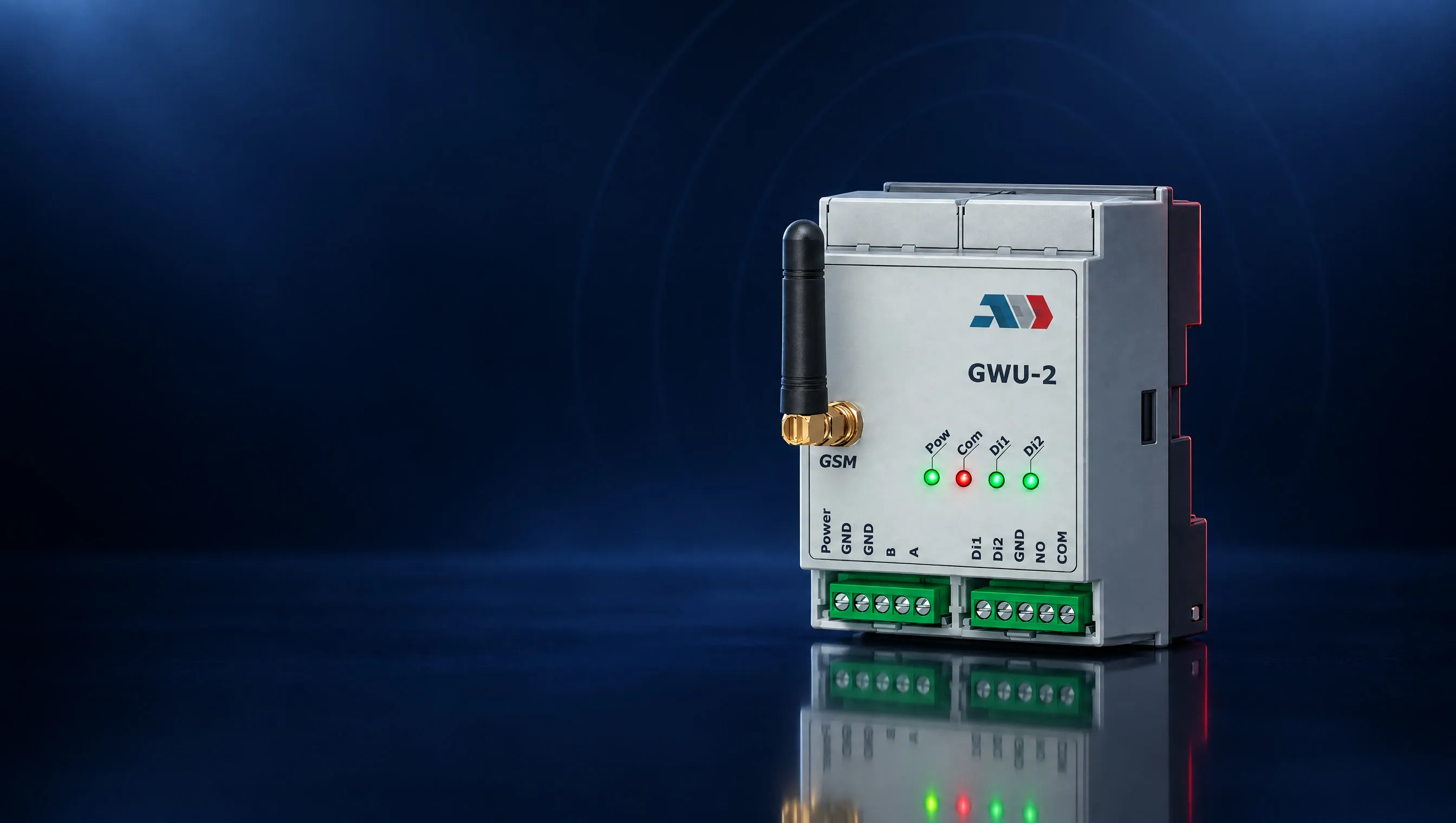

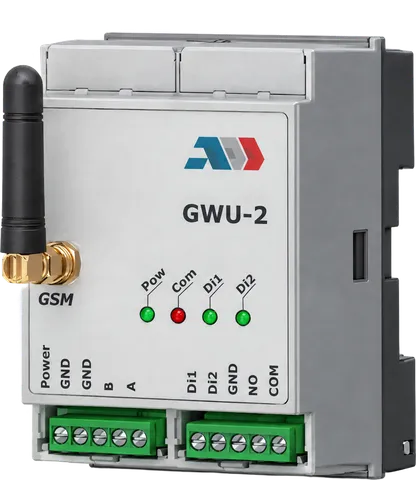

GatewayGWU-22G GSM/GPRS gateway for Modbus RTU devices2G GSM/GPRSMobile networkRS485Modbus RTU

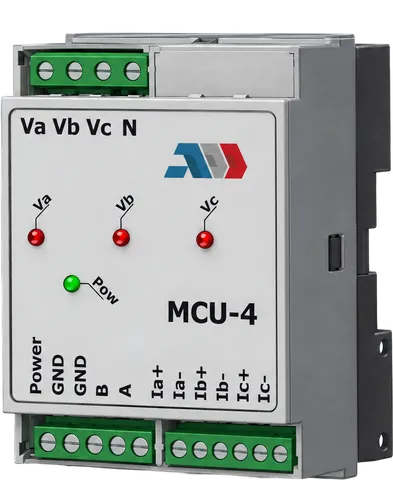

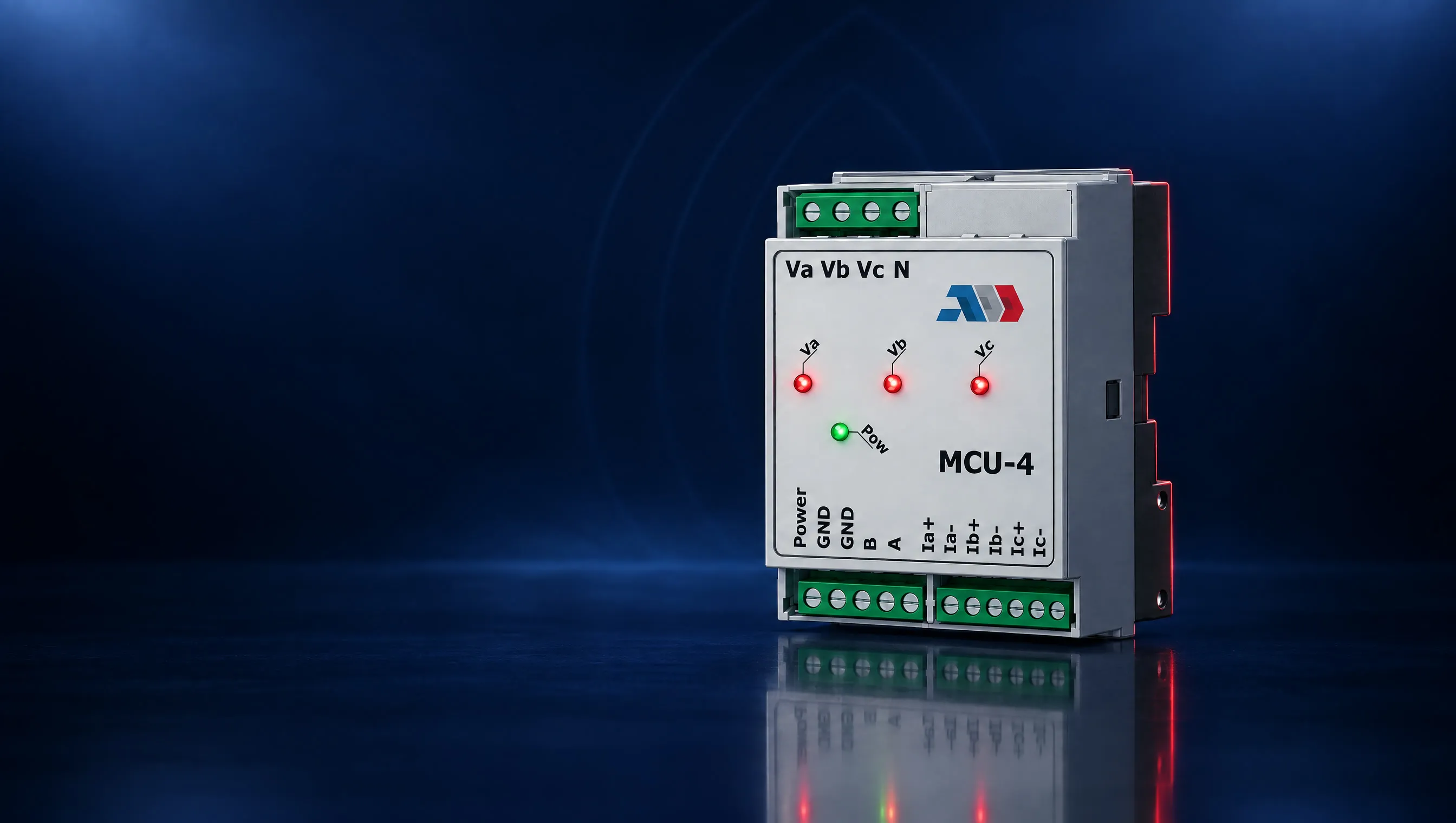

MeterMCU-4Three-phase network analyser with Modbus RTU3P+N / 1P+NPole configurationU, I, P, cos φ, EMeasured parameters

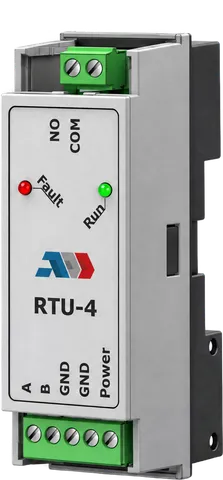

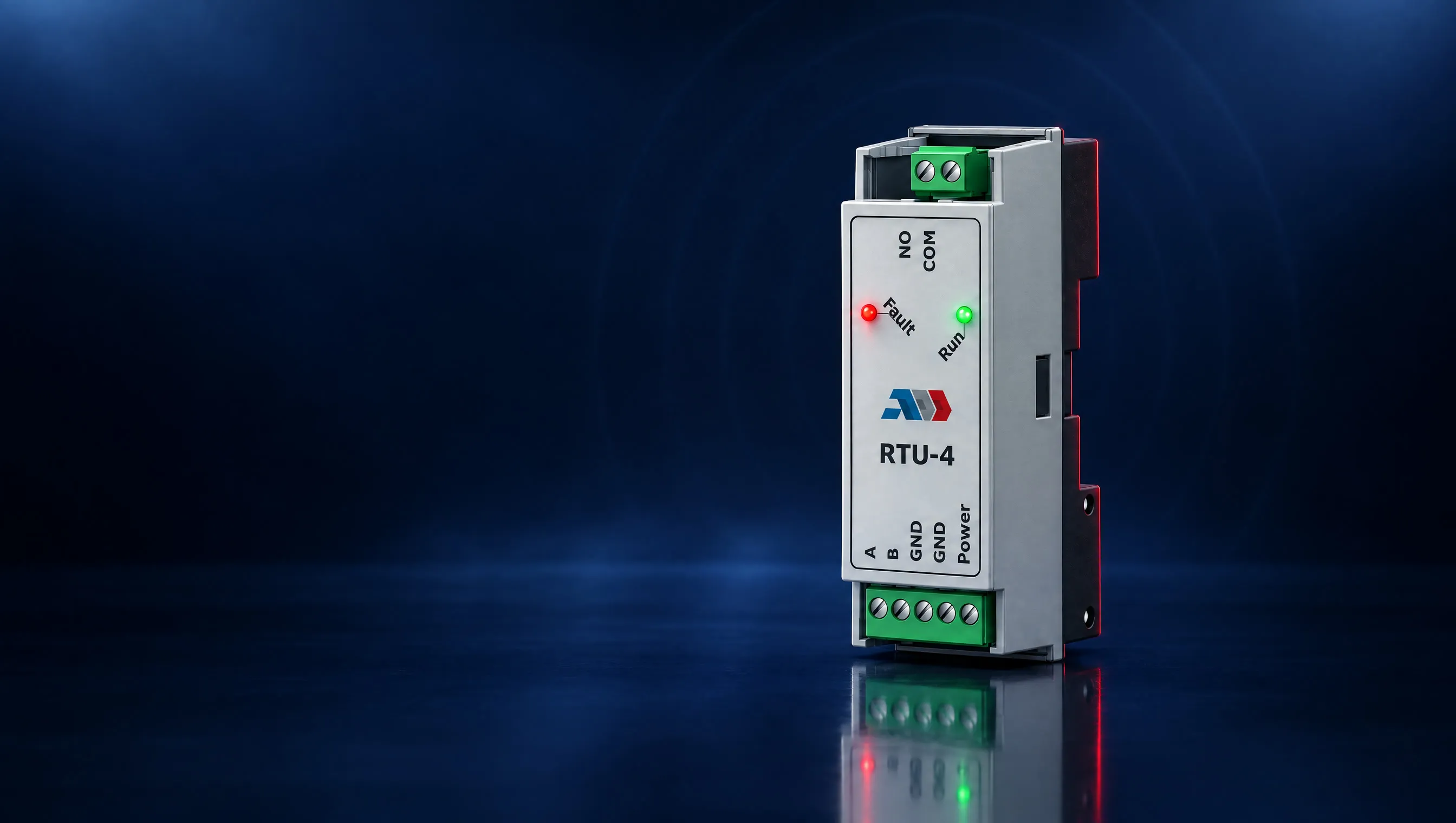

RelayRTU-4Astronomical relay with Modbus RTU and energy saving modeSunrise and sunsetRelay schedule250 VACMax. relay voltage

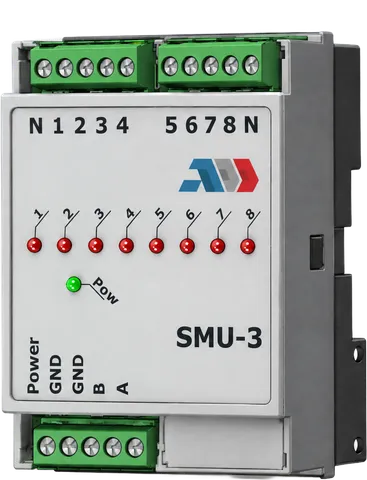

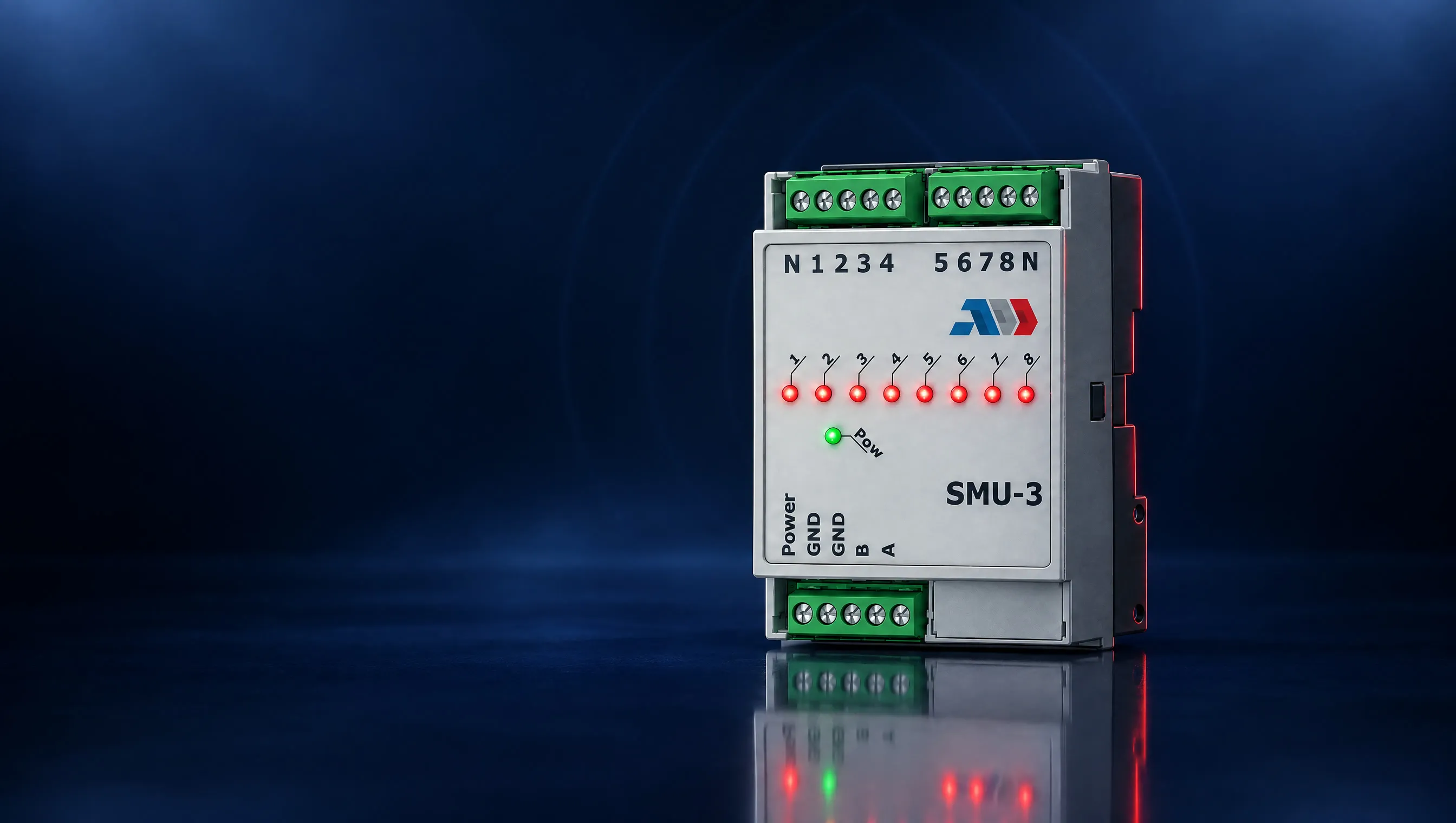

InputsSMU-3Eight-channel AC voltage detector with Modbus RTU8Voltage detection inputs280 VACMaximum input voltage

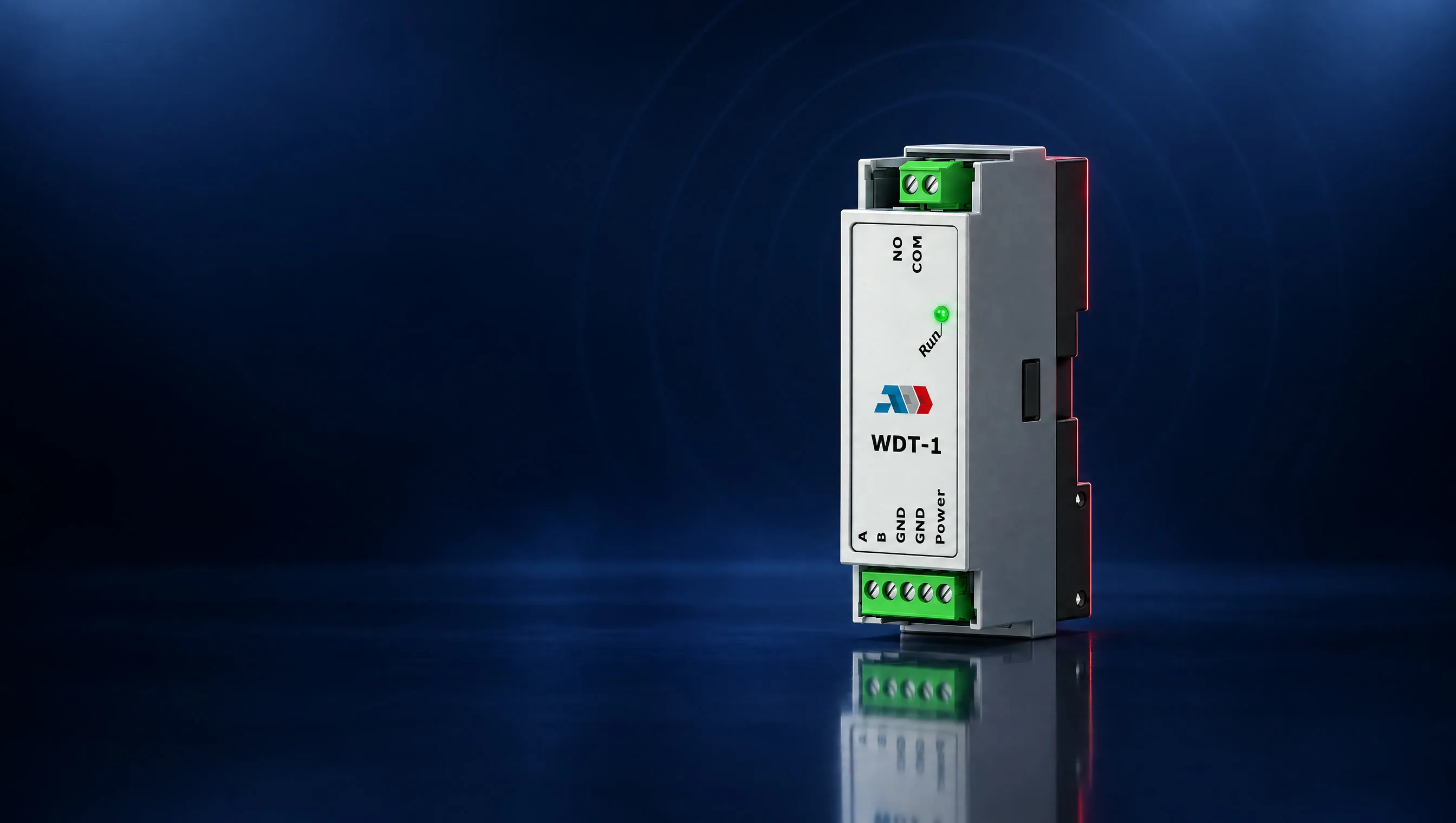

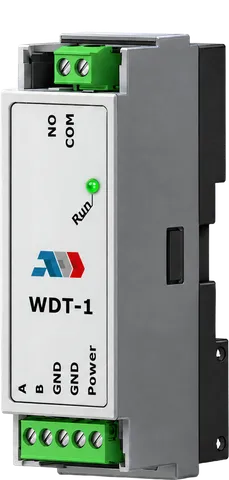

WatchdogWDT-1Watchdog relay that restarts devices when Modbus communication stopsNormally openRelay contact250 VACMax. relay voltage

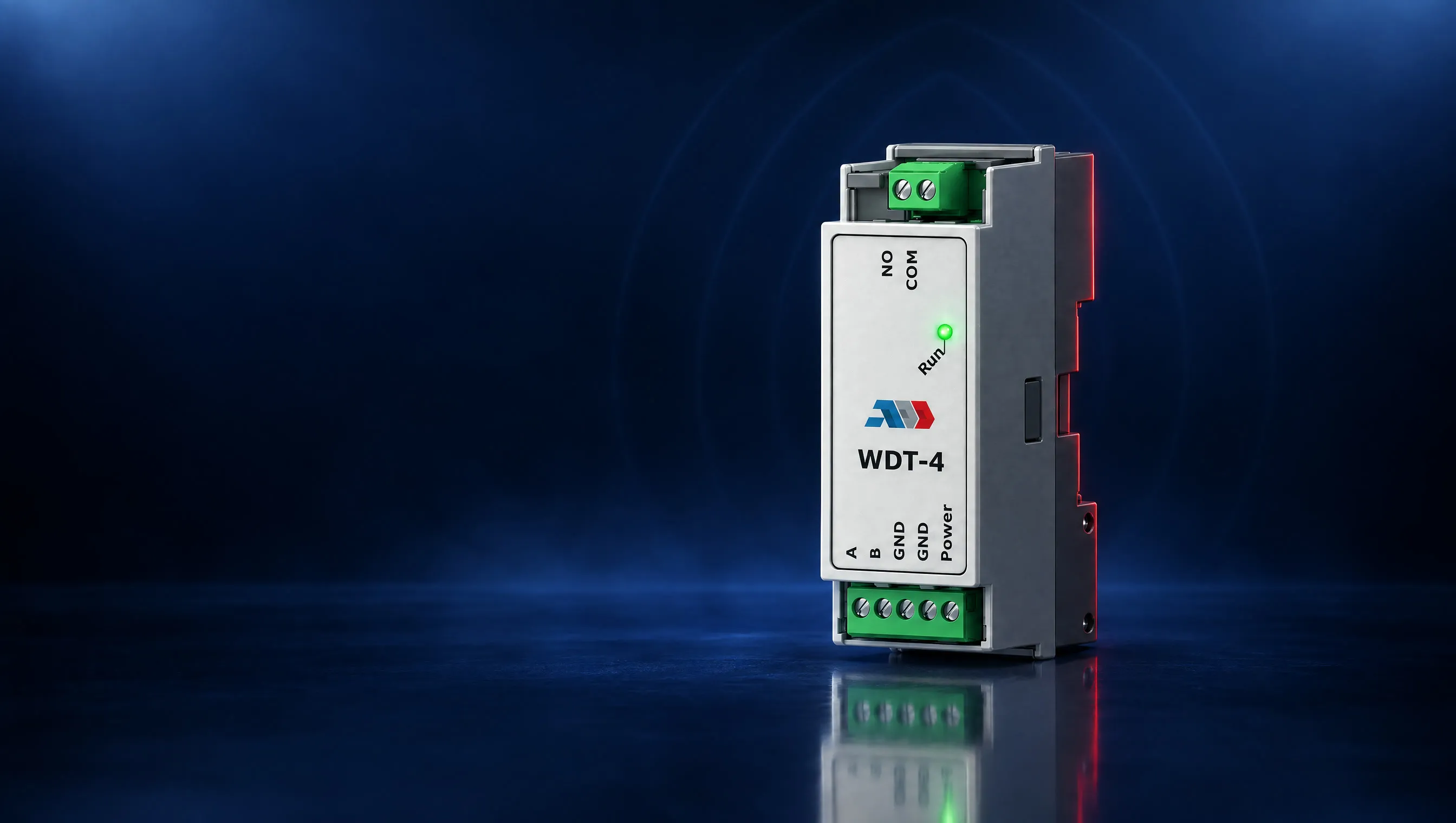

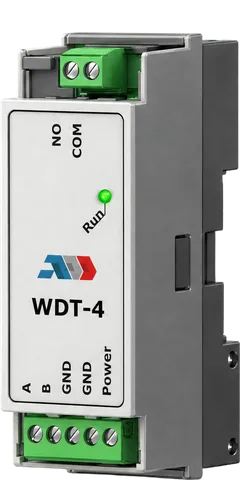

WatchdogWDT-4Modbus watchdog relay, fallback to photo sensor or clockNormally openRelay contact250 VACMax. relay voltage
Which modules are in the GridBit hardware range?
The range has eight DIN-rail modules. Three are gateways: GWU-5, GWU-4 and GWU-2. The others are the MCU-4 three-phase network analyser, the RTU-4 astronomical relay, the SMU-3 eight-channel AC voltage detector and the WDT-1 and WDT-4 watchdog relays.
Which protocol do the modules use?
The modules talk Modbus RTU over RS485. The GWU-5 gateway also reads Modbus TCP devices on its LAN port and sends data with MQTT. One gateway reads up to 127 devices on the bus.
Which gateway should I choose?
Choose by the network on site. GWU-5 works over 4G LTE Cat 1 with 2G fallback or over Ethernet, and GridBit Cloud manages it remotely. GWU-4 is a 2G/4G gateway with two digital inputs. GWU-2 is a 2G GSM/GPRS gateway for Modbus RTU devices.
Do the modules work with Modbus devices from other vendors?
Yes. The gateways read any device that talks Modbus RTU on the same RS485 bus, such as meters, controllers and sensors from other vendors. In the EIM system, third-party sensors for humidity, smoke, water and intrusion share the line with the GridBit modules.
Where do I find the specifications and the Modbus register map?
On the page of each module. It lists the specifications, the meaning of the LEDs, the Modbus registers with a filter, and the dimension and wiring drawings.
Need a configuration for your site?
Tell us what you measure and control. We answer with the modules, a price and lead time.
